Note: This download requires NinjaTrader 8 release 8.1.3 or newer.

Introduction to the Trend Noise Balance (TNB) Indicator?

The Trend Noise Balance (TNB) indicator for NinjaTrader is a technical tool designed to measure the strength of a market trend relative to the noise—or volatility—present in the market. It quantifies the proportion of the price movement that can be attributed to the trend as opposed to random fluctuations. The TNB indicator oscillates between 0 and 100, where higher values indicate stronger trending conditions and lower values suggest that market noise dominates.

Also, the Trend Quality indicator builds upon the foundation laid by the TNB indicator. While the TNB measures the balance between trend and noise, the Trend Quality indicator quantifies the quality of the trend by comparing the Trend component directly to the Noise component. It provides a clear visual representation of trend quality through a histogram, where the bars reflect the strength and direction of the trend relative to noise.

Both indicators have been introduced and composed by John Ehlers.

How Does the TNB Indicator Work?

Core Components:

1. Cumulative Price Change (CPC): Represents the accumulated price movement over time. It resets to zero when a trend reversal is detected.
2. Trend Calculation: A smoothed version of the CPC using exponential smoothing. It helps to filter out short-term fluctuations and focus on the underlying trend.
3. Noise Calculation: Quantifies market noise using either a linear or squared approach.

• • Linear Noise: Uses the simple moving average (SMA) of absolute differences between the CPC and the Trend.
  • Squared Noise: Uses the root mean square (RMS) of the squared differences.

Interpreting the TNB Indicator

The TNB indicator provides insights into the balance between trend and noise:

• Strong Trend (TNB > 80): Consider employing trend-following strategies.
• Moderate Trend (65 < TNB ≤ 80): Be cautious; the trend exists but may not be strong.
• Weak or No Trend (TNB ≤ 65): Market may be ranging or choppy; consider avoiding trend-based strategies.

Using the TNB Indicator in Trading

Customization:

The TNB indicator offers several parameters for customization:

• Fast Period and Slow Period: Periods for EMAs used in trend direction determination.
• Trend Period: Influences the smoothing factor for the Trend component.
• Noise Type: Choose between Linear or Squared noise calculations.
• Noise Length: The period over which Noise is calculated.
• Correction Factor: Adjusts the sensitivity of the Noise component.

How Does the Trend Quality Indicator Enhance the Analysis?

• Directional Information: Unlike the TNB, the Trend Quality indicator provides insight into the direction of the trend (positive or negative).
• Visual Representation: By plotting a histogram, it offers an immediate visual cue about trend quality and direction.
• Simplified Interpretation: Positive bars indicate a positive trend (bullish), while negative bars indicate a negative trend (bearish).
• Integration with TNB Components: It uses the Trend and Noise components calculated by the TNB indicator, ensuring consistency in analysis.

Interpreting the Trend Quality Indicator

• Positive Bars (Above Zero Line): Indicate that the trend is moving upward and has strength relative to noise.
• Negative Bars (Below Zero Line): Indicate that the trend is moving downward and has strength relative to noise.
• Zero or Near Zero Bars: Suggest that the trend lacks strength, and the market may be dominated by noise.

Using the Trend Quality Indicator in Trading

Customization Options

Similar to the TNB indicator, the Trend Quality indicator offers parameters for tailoring to individual trading styles:

• Fast Period, Slow Period, Trend Period: Inherited from the TNB indicator, affecting the underlying calculations.
• Noise Type, Noise Length, Correction Factor: Also inherited, ensuring consistency.
• Visual Settings:
  • Bars Opacity: Adjust the transparency of the histogram bars.
  • Positive and Negative Colors: Customize the colors for positive (bullish) and negative (bearish) trend quality bars.

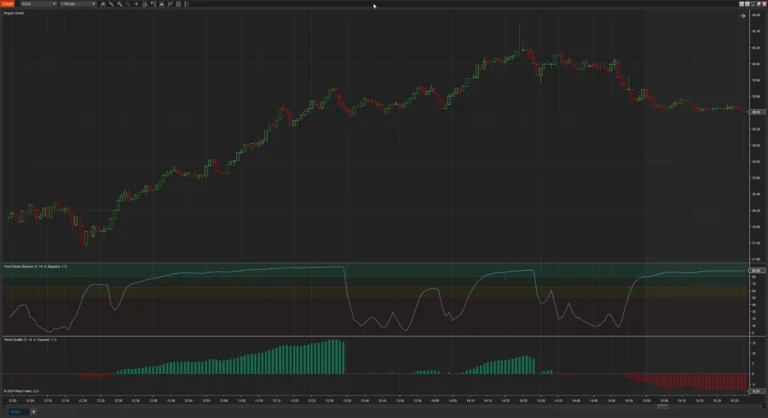

Review the screenshots and video for setup options.
